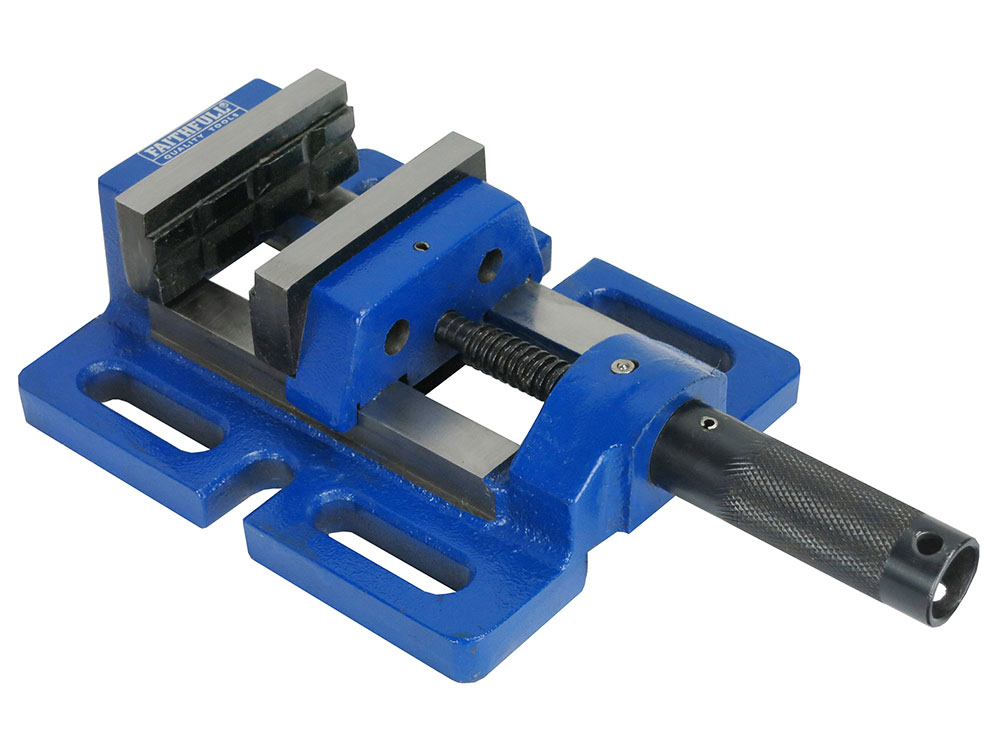

A sturdy vice constructed from graded cast iron and designed for use with bench drills and drill presses. Its compact low profile design makes it suitable for a multitude of metal and woodworking applications.
The vice features a precision ground base and vice bed for smooth lateral movement of the locking jaw.
The fixed jaw has three longitudinal and one transversal prisms to facilitate clamping of flat work pieces.
The locking spindle moves inside the hollow handle grip allowing the vice to be tightened at any position on the drilling table. Elongated clamping slots also permit rapid adjustment of the vice on the work table.
Code | Description | Jaw Width | Opening | List Price Ex VAT |
List Price Inc VAT |
||
---|---|---|---|---|---|---|---|
FAIVDP75 | Drill Press Vice - Unigrip | 75mm (3in) | 70mm (2.3/4in) | £63.32 | £75.98 | ||
Change Currency: £ € |
No User Reviews for Drill Press Vice - Unigrip 75mm
Total jaw height from top of rail: 35mm
To top of stepped jaw section from top of rail: 27mm
Gap between top of rail and bottom of jaw: 5mm
Gap between rails: 37mm
Answered by Faithfull Tools on 4th of August 2020
CAn you tell me the dimensions between the slot centres and slot lengths, please?
Asked by Pete Simpson on 21st of December 2019
Base size: L 168mm x W 146mm
Slot centre to centre: W 112mm
Slot size: L 48 x W 13mm
Both slots end to end: L 135mm
Answered by Faithfull Tools on 23rd of December 2019
Hi, Please advise the jaw height from the rails and gap between the rails
Asked by Duncan on 3rd of August 2020
