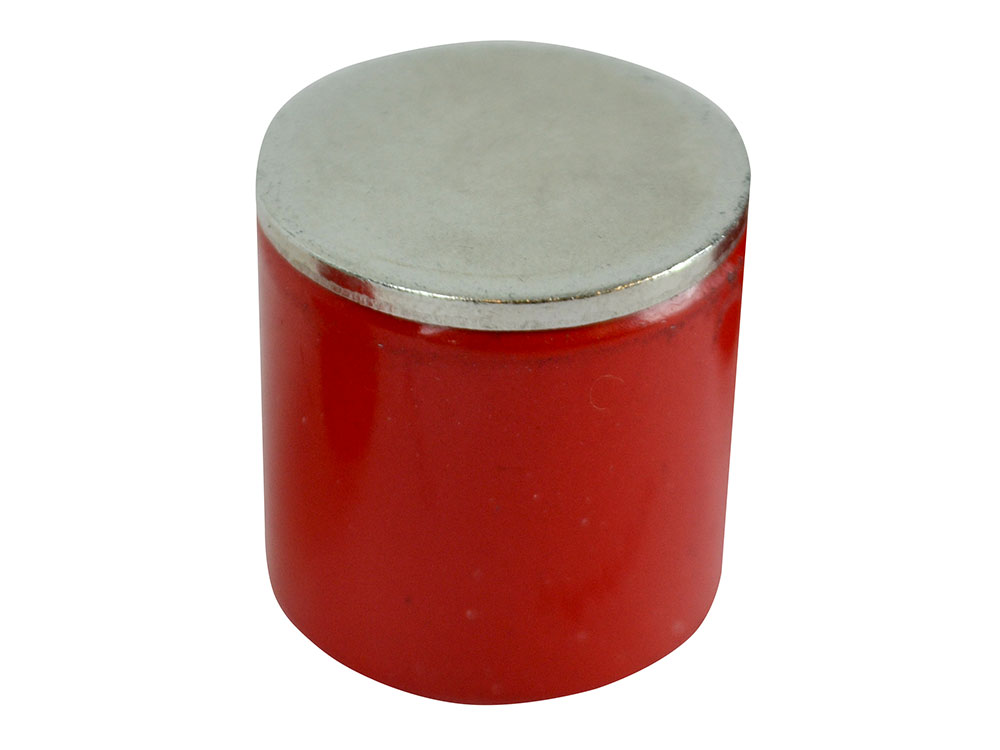

Deep Pot Magnets have a steel outer shell with a highly magnetic front face and an M6 threaded hole in the back. The magnets are made from Alnico to provide a high resistance to corrosion and will operate in temperatures up to 220°C.
They offer high holding forces on parts that are thick and clean with a good surface finish and have unlimited applications such as magnetic fasteners, displays, holding maps etc. Ideal for incorporating into jigs and fixtures.
Supplied with a plate keeper to help preserve the strength of the magnet and stop metal being attracted to the magnet when not in use.
|Code||Description||Diameter||Height||Pull power||Hole thread||List Price
|FAIMAGDPM175||Deep Pot Magnet||17.5mm||16mm||2.5kg||M6||£4.80||£5.76||Toolbank|
|FAIMAGDPM205||Deep Pot Magnet||20.5mm||19.5mm||4kg||M6||£6.37||£7.64||Toolbank|
|FAIMAGDPM270||Deep Pot Magnet||27mm||25.4mm||5kg||M6||£10.31||£12.37||Toolbank|
|FAIMAGDPM350||Deep Pot Magnet||35mm||30mm||10.5kg||M6||£17.60||£21.12||Toolbank|
|Change Currency: £ €|
No User Reviews for Deep Pot Magnets
There are no questions for Deep Pot Magnets
