Button Magnets

Faithfull Button Magnets
enlarge Click image to enlarge

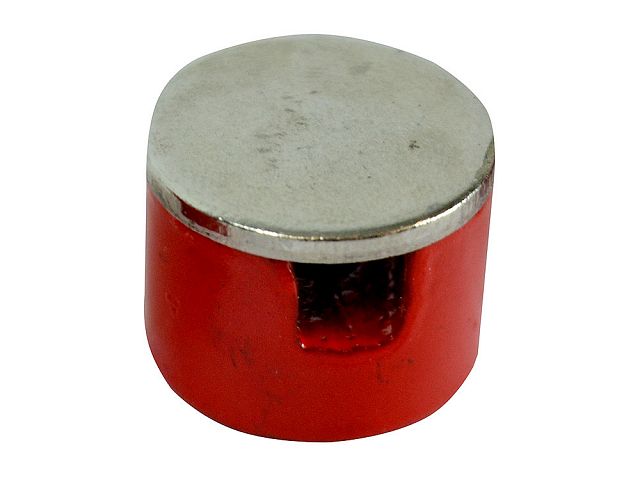

Button Magnets are similar to horseshoe magnets but supplied in a compact cylindrical format. The north and south poles are on the same face and separated by a slot. They are made from Alnico to provide a high resistance to corrosion and will operate in high temperatures up to 500°C.
All sizes have holes for mounting the magnet, but they must not be recessed into ferrous materials as it will short circuit the magnetism.
They can be used as work holding devices for welding, sign making and other applications, or for reed switch operation.


Code Description Diameter Height Pull power List Price
Ex VAT
List Price
Inc VAT
FAIMAGBM125 Button Magnet 12.5mm 9.5mm 0.7kg £4.35£5.22
FAIMAGBM190 Button Magnet 19mm 12.7mm 1.8kg £5.61£6.73
FAIMAGBM254 Button Magnet 25.4mm 16mm 3.2kg £9.38£11.26
FAIMAGBM325 Button Magnet 32.5mm 25.4mm 4.8kg £16.36£19.63
