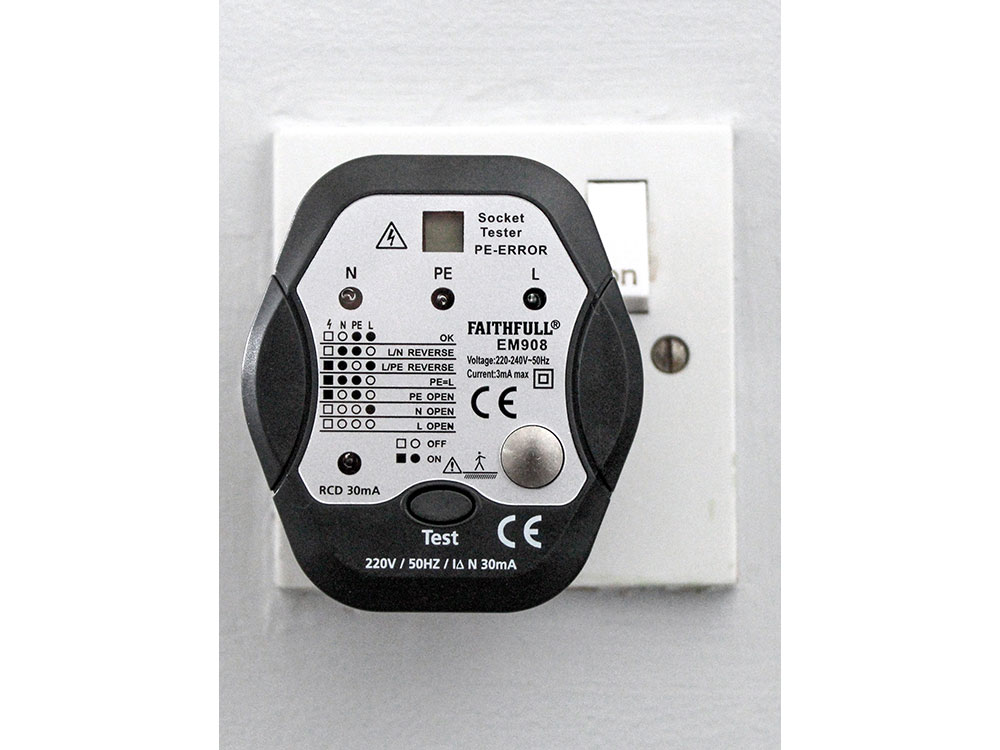

The Faithfull Socket Tester is an essential mains safety tester designed for testing socket wiring and RCDs. It will determine whether a socket is wired correctly or incorrectly. Used in conjunction with the coding table provided, the five combined indicators show the true status of the sockets wiring condition. It provides a true ground error indication through the LCD if dangerous contact voltage is present at the protective earth (PE). The use of three neon indicators for L-N-PE provides rapid detection of correct/incorrect socket wiring. It is equipped with an additional RCD tester for testing the operation of RCDs with a rating of not more than 30mA.
| Specifications | |
|---|
| Socket type: | UK 240V 3 Pin |
| Nominal voltage: | 220V ±10% |
| Frequency range: | 50 ~ 60Hz |
| Measurement category: | CATIII, 300V |
| RCD-test time: | 60 ~ 300ms |
| Contact voltage threshold: | < 35 AC against ground depending on coupling to earth |
| RCD test current: | 30mA ±15% |
| Dimensions: | 77 x 67 x 66mm |
| Weight: | approx 70g |
